This is in regards to converting a raw static file from a Carlson RTk5 GNSS receiver into RINEX using SurvPC 7.04.4 or higher

1. Run SurvPC 7.04.4 or higher on your RTk5 tablet
2. Then tap Equip / GPS Rover set to the Model: RTk5 and tap the green check
3. Then tap Equip / GPS utilities / GPS Raw Utilities / File Manager
4. Tap on the static file you need to work with to highlight it
5. Check the box for "Create Rinex" in the bottom right
6. Tap the "Download" button in the bottom middle
7. When the Save As dialog appears, you can either green check to confirm or nominate another folder location where you would like the njs and resulting Rinex file to be stored (i.e. a USB drive)

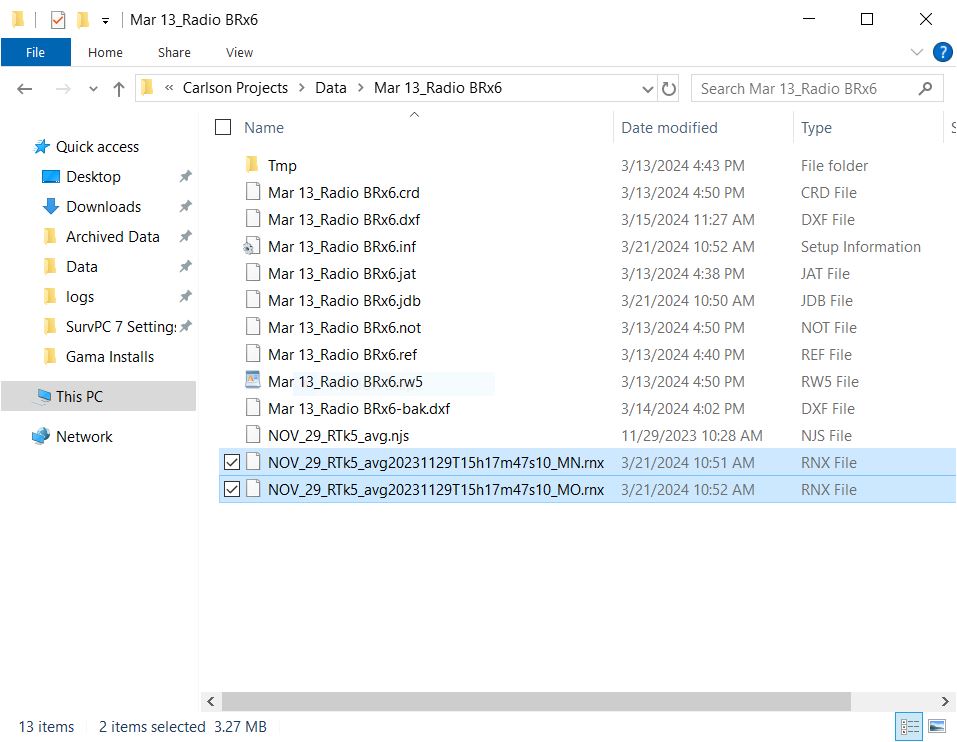

This downloads and converts the static files into RINEX with a *_MO.rnx file placed in your current Job folder (or nominated file location) using the format below:

jobname_YYYYMMDDTxxhxxmxxs_MO.rnx

You can upload this file directly to OPUS or another post-processing office software.
